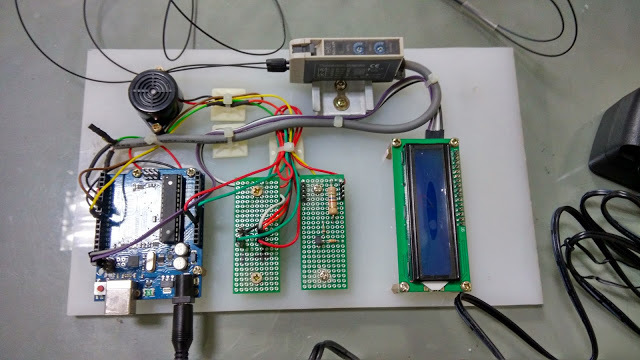

Arduino 的便利性使得大家都節省不少時間以及金錢，最近我們老大需要一台可以偵測速度變化的工具，只給我很短的時間，想來想去也只有Arduino 比較適合。
所以利用幾個網上的時間把它完成，因為上班時間實在是很忙沒有時間可以寫程式。
source code如下：
/* FreqMeasure - Example with LCD output
* http://www.pjrc.com/teensy/td_libs_FreqMeasure.html
*
* This example code is in the public domain.
李進衛 修改為我適用的程式程式最原始的出處如上
Date:2016年3月29日05:40:06
下班時間撰寫的程式
*/
#include
#include // IIC communication I2C使用的函數
#include // I2C LCD 使用的函數 使用LiquidCrystal目錄之下的LiquidCrystal_I2C.h
//#include "eeprom_anything.h"
#define wait_stable 0
#define set_speed_flag 1
#define read_speed_frequency 2
//struct config_type
//{
// float fail_freq = 0.00;
//};
byte mode = 0;
byte sqn = 0;
float readarray[12];
float freq33min = 2.14;
float freq33max = 2.26;
float freq45min = 2.91;
float freq45max = 3.09;
double sum=0;
double frequval = 0;
int count=0;
#define P_buzzer 6
float frequarray = 0.0;
boolean f_stable = 0;
boolean f_3345 = 1;
boolean f_warning = 0;
//#include
byte ok33counter = 0;
byte ok45counter = 0;
LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE); // Set the LCD I2C address
//LiquidCrystal lcd(5, 4, 3, 2, 1, 0);
void setup() {
Serial.begin(57600);
pinMode(P_buzzer,OUTPUT); // setting P_buzzer for output
digitalWrite(P_buzzer,HIGH); // buzzer off
// lcd.begin(8, 2);
// lcd.print("Freq:");
lcd.begin(16,2); // initialize the lcd for 20 chars 4 lines, turn on backlight
lcd.backlight(); //點亮背光
lcd.setCursor(0, 0); //設定游標在第2列第0行
lcd.print("2016-04-08v02");
lcd.setCursor(0, 1);
lcd.print("LeeCW");
delay(1000);
lcd.clear();
FreqMeasure.begin();
}
//*******************************
//空轉等待轉速穩定等8個信號
//*******************************
//
void speed_stable(void)
{
lcd.setCursor(0,0);
lcd.print("Waiting Stable!!");
for (int i = 0; i
{
while(!FreqMeasure.available()); // 等待傳回可以讀計數數值
}
mode = set_speed_flag; // task to go set speed
sqn = 0; //station = 0
}
/*
***************************************************************
副程式名稱：speed3345read
傳回值： 沒有
設定值： f_3345 旗標
作用： 33轉，45轉的判斷
先讀進10筆資料--》判斷是33轉或者45轉
***************************************************************
*/
void speed3345read(void)
{
if (f_warning==0)
{
lcd.clear();
lcd.setCursor(0,0);
lcd.print("33/45 Decide!!");
}
for ( int ii=0; ii
{
while(!FreqMeasure.available()); // 等待傳回可以讀計數數值
frequval = FreqMeasure.read(); // 讀取數值
frequarray = FreqMeasure.countToFrequency(frequval); //將數值換算成頻率存到矩陣當中
readarray[ii] = frequarray;
Serial.println(readarray[ii]);
}
for (int i=0;i
{
frequarray = readarray[i];
if(frequarray >= freq33min)
{
if (frequarray <=freq33max)
{
ok33counter++;
// Serial.print("ok33counter:");
// Serial.print(i);
// Serial.print("-->");
// Serial.println(ok33counter);
}
}
/* if ((frequarray>=freq33min)&&((frequarray freq33min))) // 測試陣列中的數量OK的是多少?
{
ok33counter++;
Serial.print("ok33counter:");
Serial.print(i);
Serial.print("-->");
Serial.println(ok33counter);
} */
}
for (int i=0;i
{
frequarray = readarray[i];
if (frequarray >= freq45min)
{
if (frequarray <= freq45max )
{
ok45counter++;
}
}
/*
if ((frequarray>=freq45min)&&((frequarray freq45min))) // 測試陣列中的數量OK的是多少?
{
ok45counter++;
// for debug Serial.print("ok45counter:");
// for debug Serial.print(i);
// for debug Serial.print("-->");
// for debug Serial.println(ok45counter);
} */
}
if (ok33counter >ok45counter)
{
f_3345 = 1;
ok33counter = 0;
ok45counter = 0;
// Serial.println("Speed is 33!!");
} else{
f_3345 = 0;
ok33counter = 0;
ok45counter = 0;
// Serial.println("Speed is 45!!");
}
ok33counter = 0;
ok45counter = 0;
mode = read_speed_frequency;
sqn = 0;
}
void read_freq_000(void)
{
// lcd.clear();
// lcd.setCursor(0,0);
// lcd.print("33/45 Test!!");
for ( int ii=0; ii
//連續讀12筆資料
{
while(!FreqMeasure.available()); // 等待傳回可以讀計數數值
frequval = FreqMeasure.read(); // 讀取數值
frequarray = FreqMeasure.countToFrequency(frequval); //將數值換算成頻率存到矩陣當中
readarray[ii] = frequarray;
lcd.setCursor(0, 1);
lcd.print(frequarray);
lcd.print("HZ");
if (f_3345 ==1)
{
lcd.setCursor(7, 1);
lcd.print("SPEED 33");
}else {
lcd.setCursor(7, 1);
lcd.print("SPEED 45");
}
}
sqn = 1;
}
void read_freq_100(void)
{
ok33counter = 0;
ok45counter = 0;
if (f_3345==1) // 33 then
{
for (int i=0;i
{
frequarray = readarray[i];
// for debug Serial.println(frequarray);
if (frequarray >= freq33min)
{
if (frequarray <= freq33max)
{
ok33counter++;
}
}
/* if ((frequarray >freq33min)&&((frequarray < freq33max)||(frequarray > freq33min))) // 測試陣列中的數量OK的是多少?
{
ok33counter++;
// for debug Serial.print("OK counter is :");
// for debug Serial.println(ok33counter);
} */
} // 讀取陣列中的資料來判斷有超標的資料有幾筆？
if (ok33counter < 8)
{
digitalWrite(P_buzzer,LOW);
ok33counter = 0;
lcd.setCursor(0, 0);
lcd.print("33 Warning !!");
mode = set_speed_flag;
f_warning = 1;
}
ok33counter = 0;
} else
{
for (int i=0;i
{
frequarray = readarray[i];
if (frequarray >= freq45min)
{
if (frequarray <= freq45max )
{
ok45counter++;
}
}
// if ((frequarray >freq45min)&&((frequarray < freq45max)||(frequarray > freq45min))) // 測試陣列中的數量OK的是多少?
//if ((frequarray >freq33max)||(frequarray < freq33min)) // 測試陣列中的數量OK的是多少?
// {
// ok45counter++;
// }
} // 讀取陣列中的資料來判斷有超標的資料有幾筆？
if (ok45counter < 8)
{
digitalWrite(P_buzzer,LOW);
ok45counter = 0;
lcd.setCursor(0, 0);
lcd.print("45 Warning !!");
mode = set_speed_flag;
f_warning = 1;
}
ok45counter = 0;
}
sqn =0;
}
void read_freq(void)
{
// config_type config;
switch(sqn)
{
case 0: read_freq_000(); break;
case 1: read_freq_100(); break;
default : sqn = 0;
}
/*
for ( int ii=0; ii
//連續讀12筆資料
{
while(!FreqMeasure.available()); // 等待傳回可以讀計數數值
frequval = FreqMeasure.read(); // 讀取數值
frequarray = FreqMeasure.countToFrequency(frequval); //將數值換算成頻率存到矩陣當中
readarray[ii] = frequarray;
}
if (f_3345==1) // 33 then
{
for (int i=0;i
{
frequarray = readarray[i];
if ((frequarray >freq33max)||(frequarray < freq33min)) // 測試陣列中的數量OK的是多少?
{
ok33counter++;
}
} // 讀取陣列中的資料來判斷有超標的資料有幾筆？
if (ok33counter >=3)
{
ok33counter = 0;
lcd.setCursor(0, 0);
lcd.print("33 Warning !!");
}
ok33counter = 0;
} else
{
for (int i=0;i
{
frequarray = readarray[i];
if ((frequarray >freq33max)||(frequarray < freq33min)) // 測試陣列中的數量OK的是多少?
{
ok45counter++;
}
} // 讀取陣列中的資料來判斷有超標的資料有幾筆？
if (ok45counter >=3)
{
ok45counter = 0;
lcd.setCursor(0, 0);
lcd.print("45 Warning !!");
}
ok45counter = 0;
}
if (FreqMeasure.available()) {
// average several reading together
sum = sum + FreqMeasure.read();
count = count + 1;
if (count > 2) {
float frequency = FreqMeasure.countToFrequency(sum / count);
lcd.setCursor(0, 1);
lcd.print(frequency);
lcd.print("HZ");
// Serial.println(frequency,DEC);
sum = 0;
count = 0;
}
} */
}
void loop() {
switch(mode)
{
case wait_stable: speed_stable(); break; //等待轉速穩定
case set_speed_flag : speed3345read(); break; //檢測轉速
case read_speed_frequency: read_freq(); break; //計算頻率
default : mode = 0;
}
/*
這是用來測試矩陣的讀寫判斷是否正常
